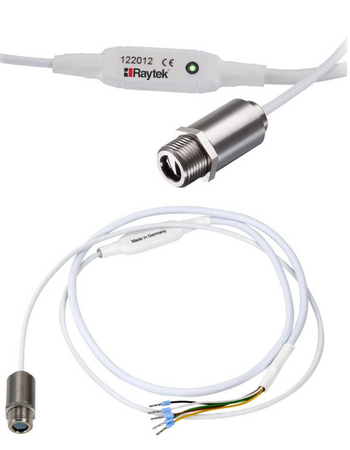

Raytek MI Micro

Online Infrared Thermometer with spectral response of 8-14 micron suitable for grey bodies ( non metallic shinny surfaces).

Temp Range: -30 to 1000 ⁰C ( scal able)
Distance to spot ratio: 12: 1
Adjustable emissivity, Peak Hold, Calibration offset ( ALL through software).
Output: 4-20mA (Two wire)
Sensor can with stand ambient temperature up to 120 ⁰

Industries

Industries

Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat.

Parameters	Range	Range
IRT Temperature	-50°C-800°C (-58'F-1472°F) (-68°F-1472°F).	-50°C-0°C (-58F-32°F). +2°C 0°C-560°C (-22°F-716F). (1.5%+1)
K type thermocouple	-50°C-800°C (-58 F-1472°F)	+(1.5%+1)
Ambient temperature	-10°C-60°C (14"-140°F)	+-1.0°C
Relative humidity	0%-99%RH	14%RH
Dew point temperature	-10°C-50°C (14'F-140°F)	+-1.0°C
General
Power supply	9V6F22 Battery
Weight	130g
Size	60mmX111mmX48mm
Safety Rating	EN61328,EN60825

Features
Color Display
Laser	1mW(630nm-650nm) 12 point circular measurement area indication
D:S	12:1
Emissivity	0.10-1.00
Spectral Response	8-14um
"C/°F
IRT Temperature	0.5s
Temperature upper/lower limit alarm (Red Yellow Green)
Data Hold
Backlight
Auto Power Off
Low Battery Indication
MAX
